Ryan’s Time Attack EVO X

This Time Attack EVO X project was quite the custom build. Work included turbo kit fabrication, air-air intercooler, aluminum exhaust, reverse-entry intake manifold, roll cage, chromoly tubed front end and more. Ryan plans to compete with the car in Global Time Attack’s Limited Class with over 800whp on tap.

Modifications

Turbo / Induction / Cooling
  • BorgWarner EFR 9274 Turbo

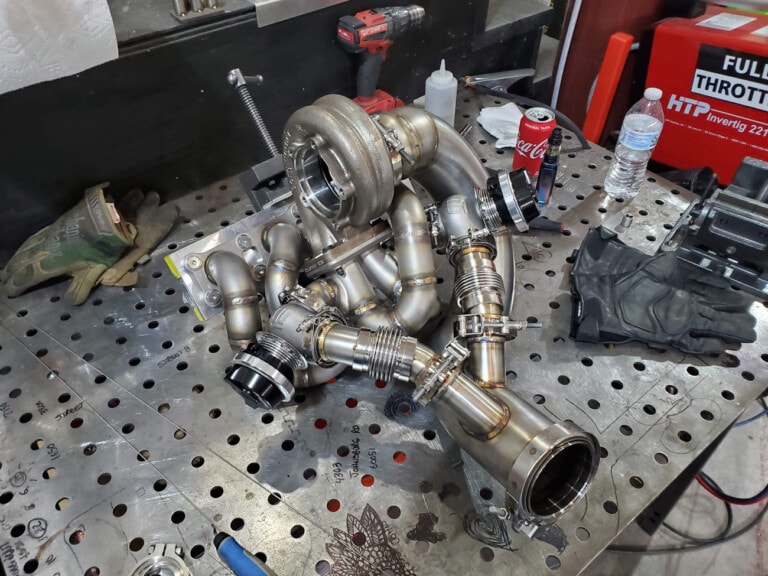

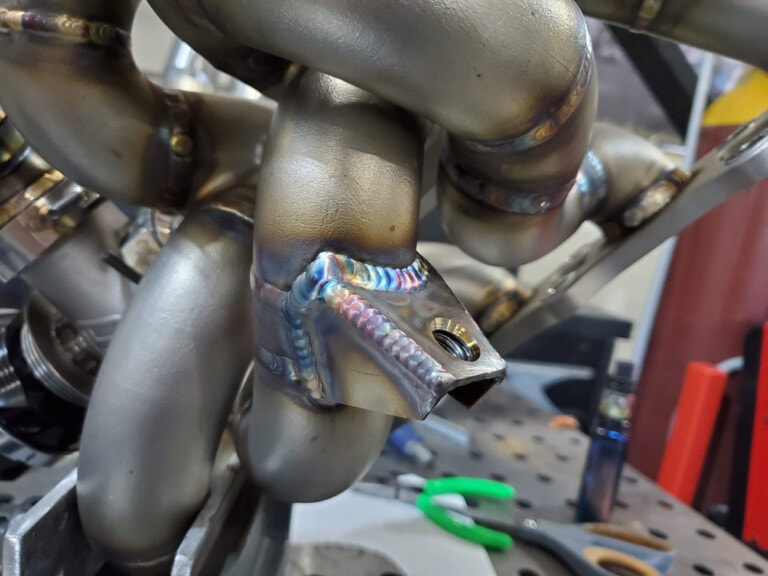

  • Rada 347SS Turbo Manifold
  • Twin Turbosmart 45mm Motorsport Wastegates

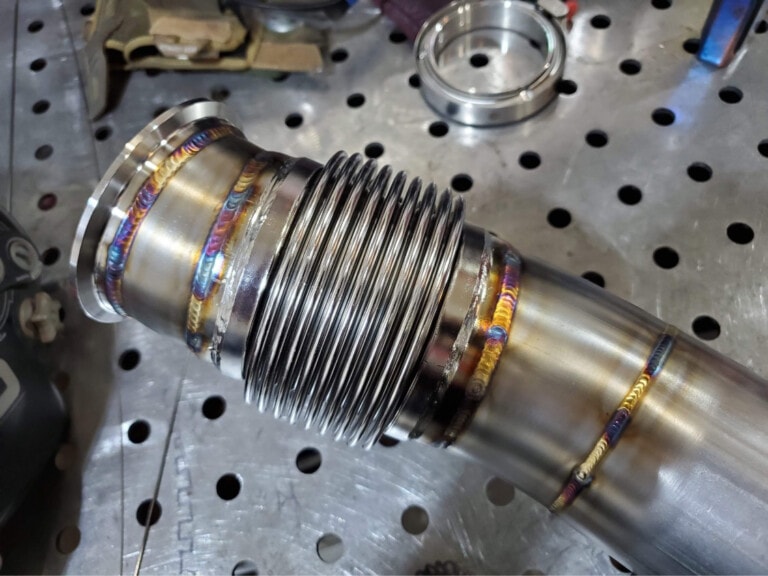

  • Rada 3.5″ Stainless Steel Downpipe

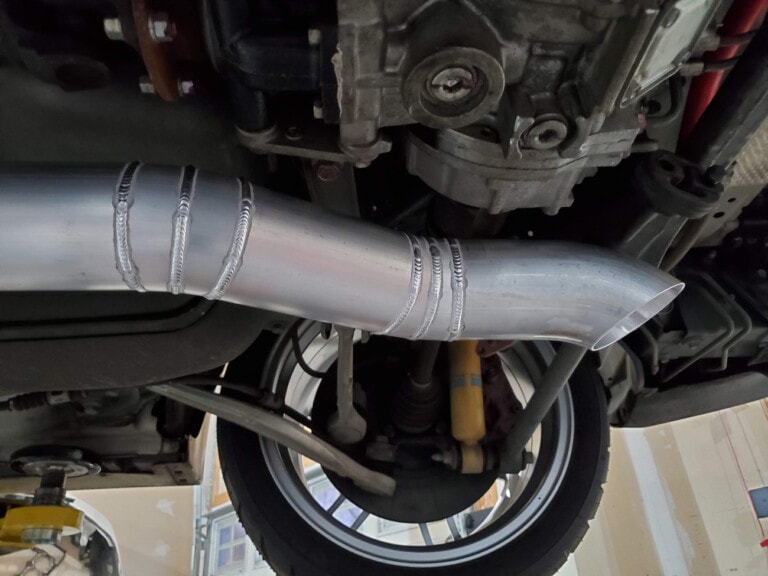

  • Rada 3.5″ Aluminum Exhaust

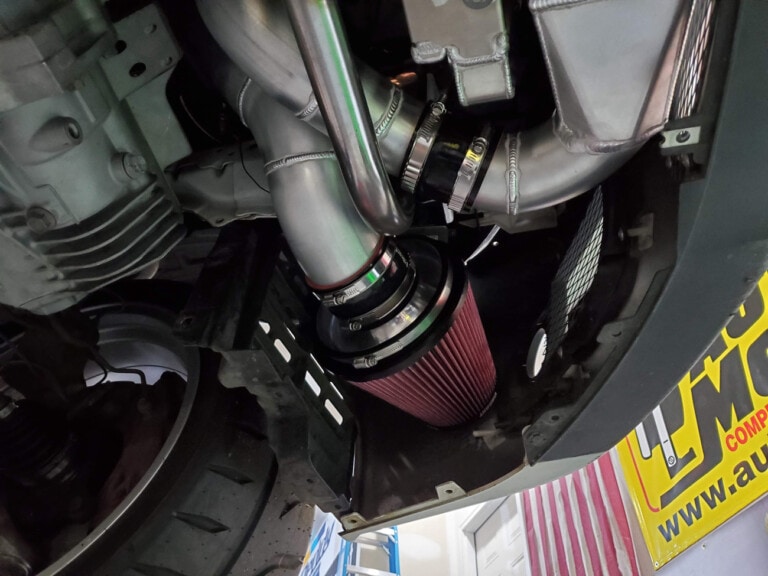

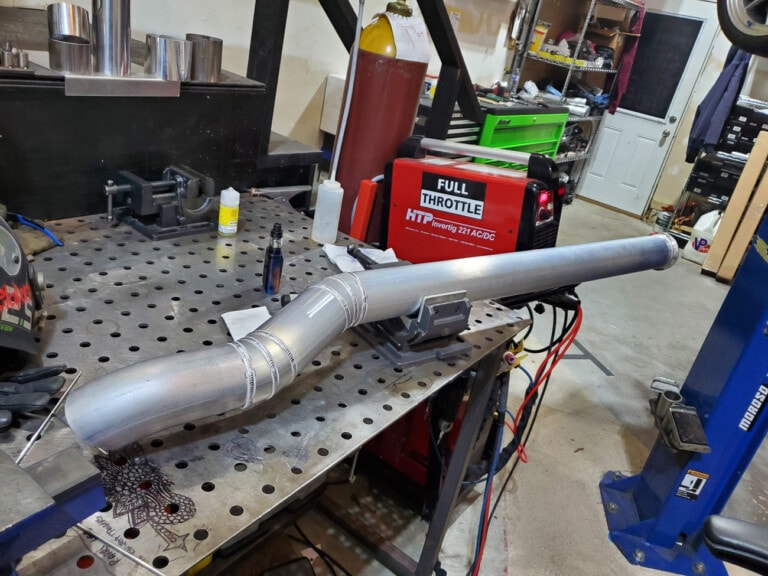

  • Rada 4″ Aluminum Intake Pipe

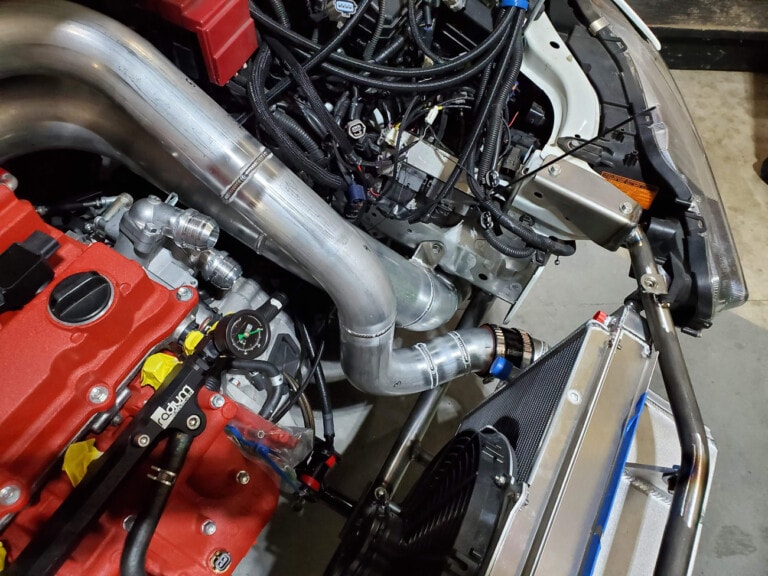

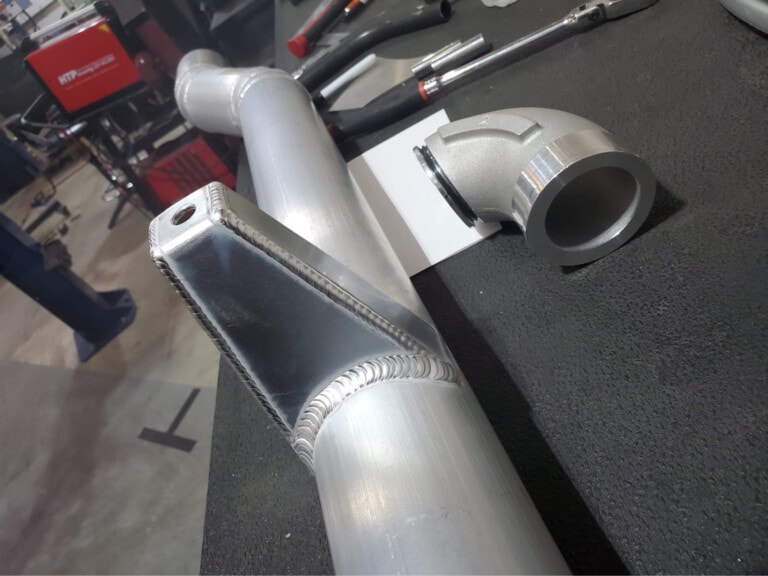

  • Rada 3″ Aluminum Intercooler Piping

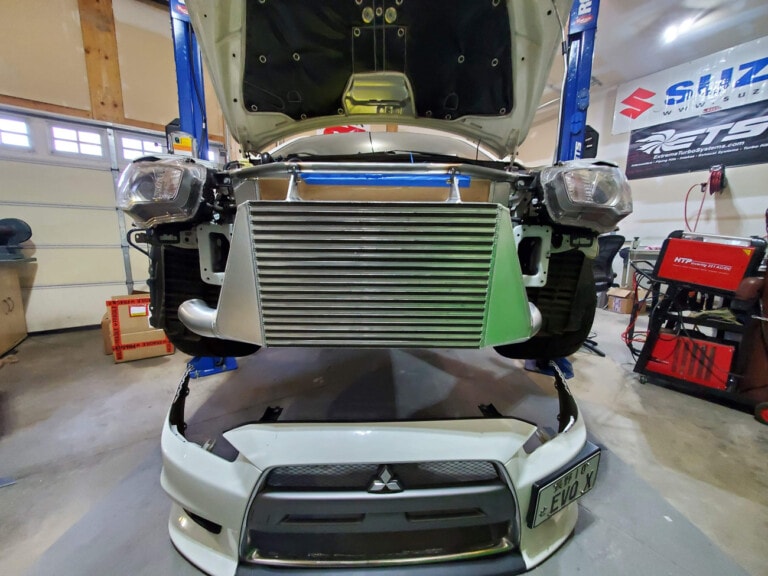

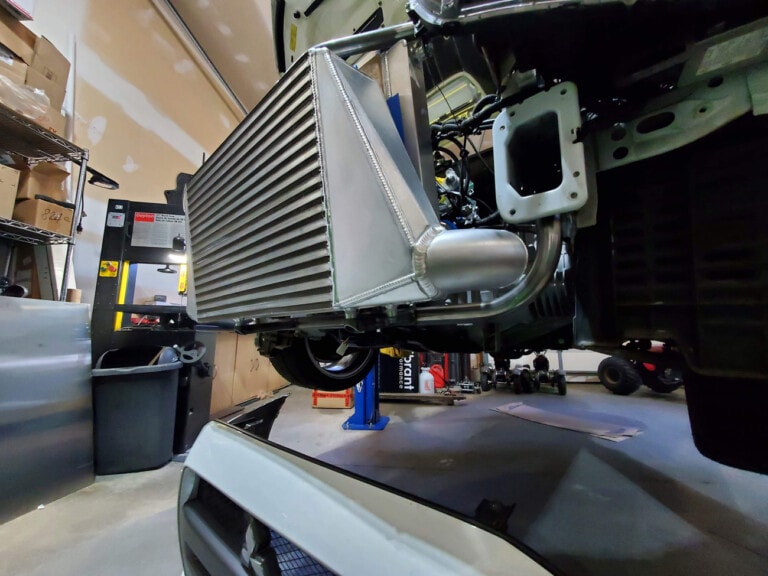

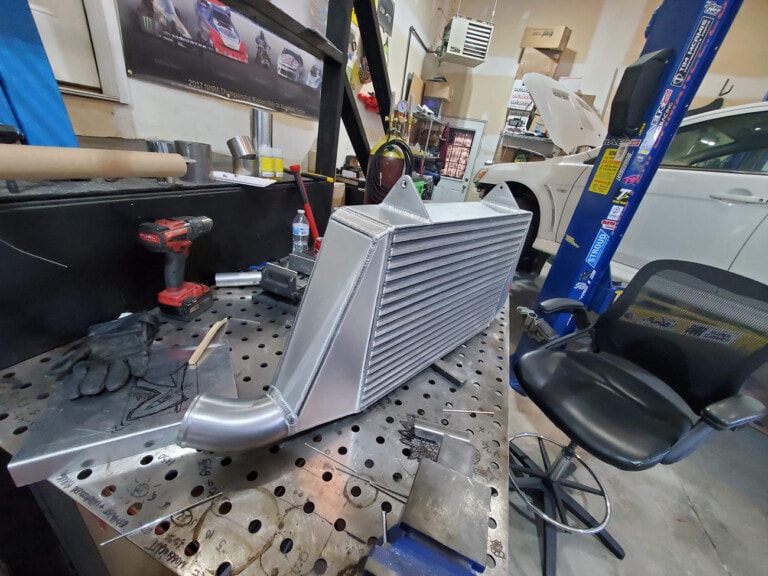

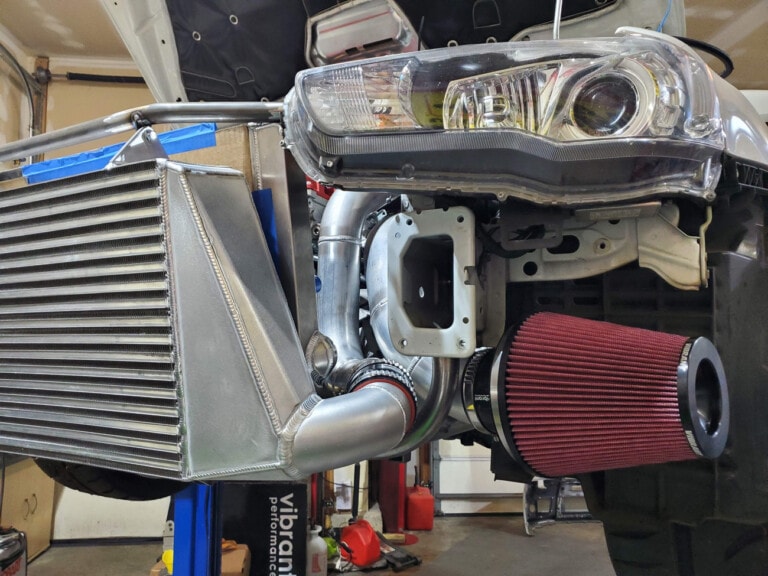

  • Rada Intercooler Using Garrett 22″x14″x 4.5″ Air-Air Core With Inlet Diffuser
  • C&R Racing Late Model Radiator / Oil Cooler Module

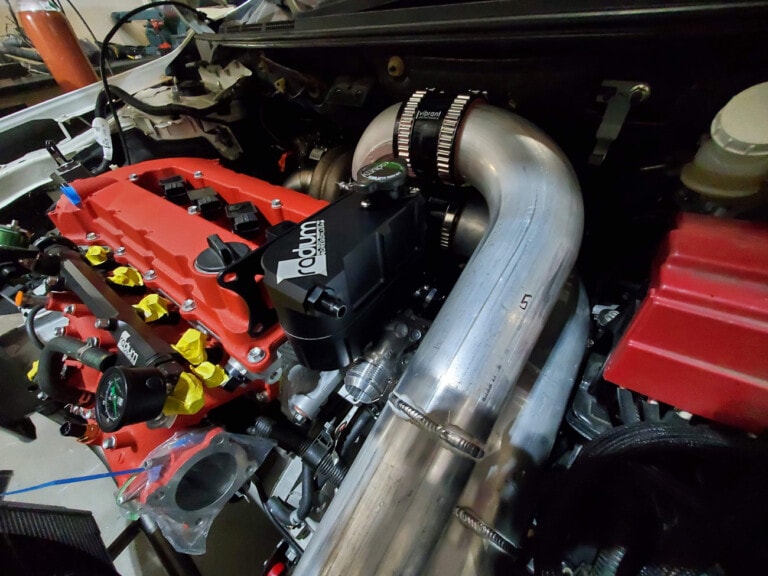

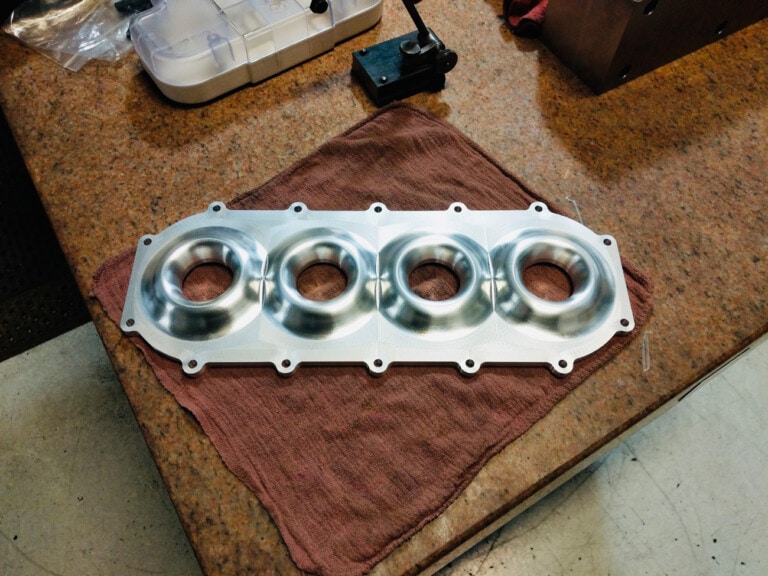

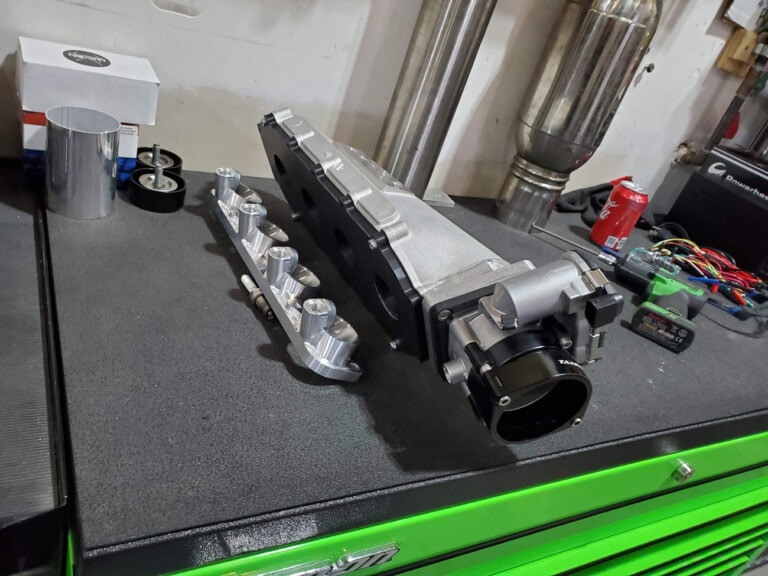

  • Rada Reverse-Entry Intake Manifold

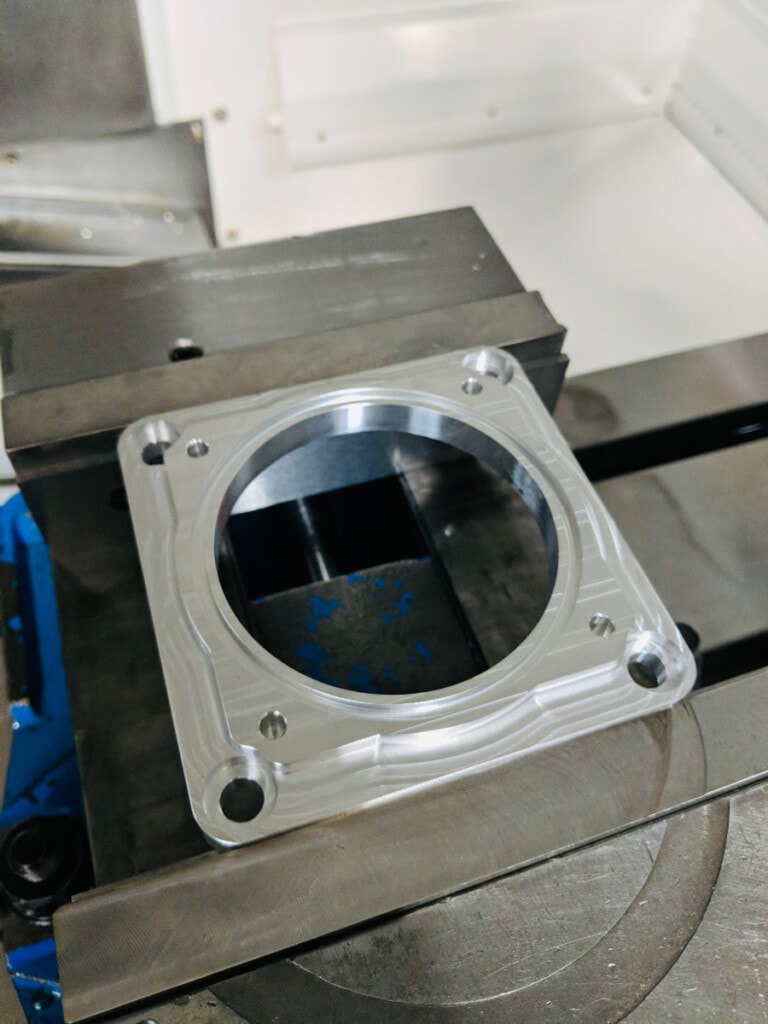

  • Bosch Motorsports 74mm Throttle Body
Engine
  • 2.4L
  • Manley Billet 94mm Stroker Crankshaft
  • Manley Turbo Tuff Forged Rods
  • Manley Forged Pistons
  • L.A.Sleeve Performance Sleeves
  • ARP Custom Age 625+ Head Studs
  • ARP Custom Age 625+ Rod Bolts
  • Cosworth Headgasket
  • GSC S2 Camshafts

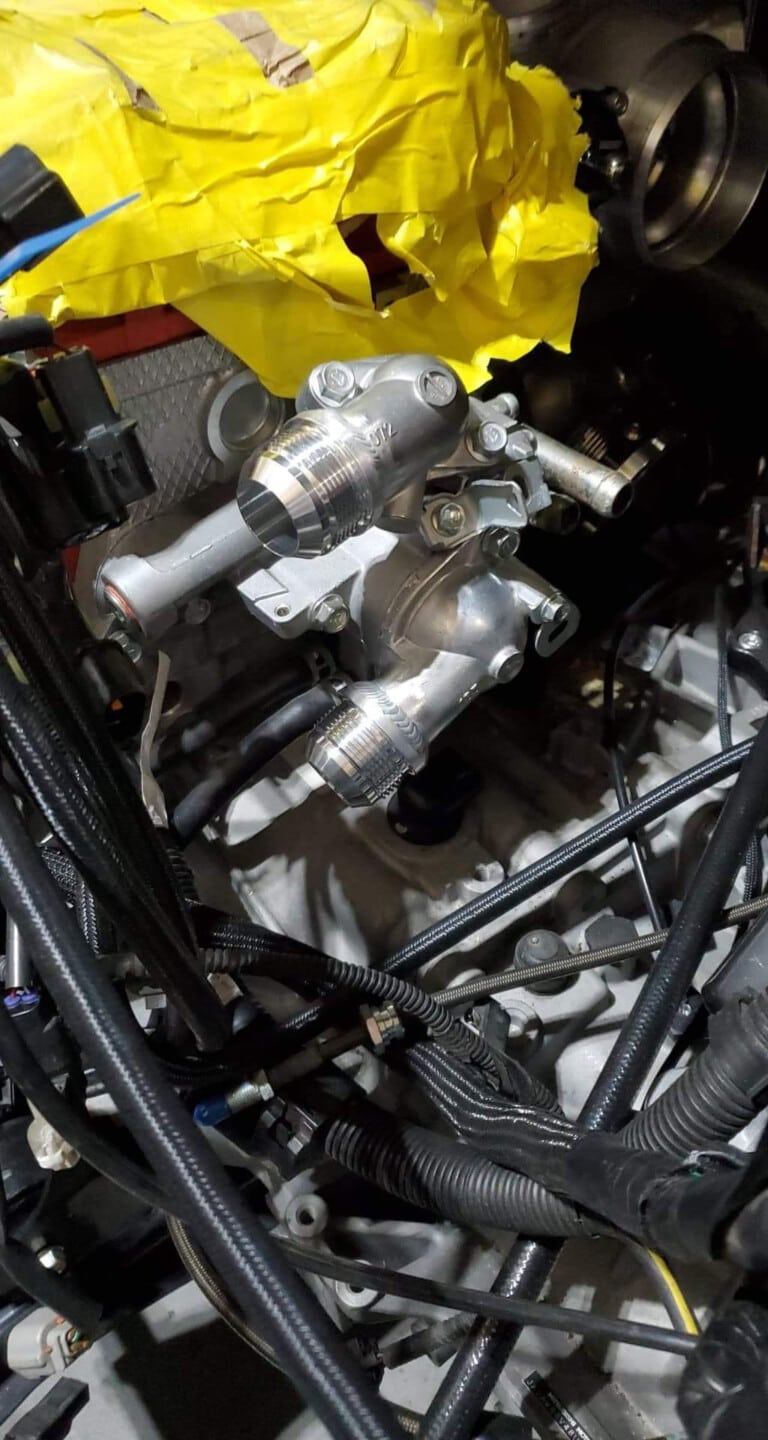

  • Turbomotiv Billet Exhaust MIVEC Housing
Electronics / Fueling
  • MoTec M150 ECU with JRR Firmware
  • Salasko Racing Mil-Spec Wiring Harness Adapter with Auxiliary I/O
  • ID2000 Fuel Injectors
  • Radium Fuel Rail
  • Radium Fuel Pressure Regulator
  • Radium Fuel Pulse Damper
  • Twin Bosch 044 Fuel Pumps
  • Radium Surge Tank
Drivetrain / Brakes / Suspension
  • Samsonas 5-Speed Sequential Gearbox
  • Exedy Twin Disc HD Clutch With AMS Push Style Conversion
  • ShepTrans EVO 8 Rear Diff Conversion With Cusco 1.5 Way LSD
  • ShepTrans Rebuilt Transfer Case With Wavetrac LSD
  • Driveshaft Shop Rear Axles
  • Driveshaft Shop Carbon Fiber Driveshaft
  • 3-Way Adjustable Coilovers
  • Big Brake Kit Package
Misc / Safety

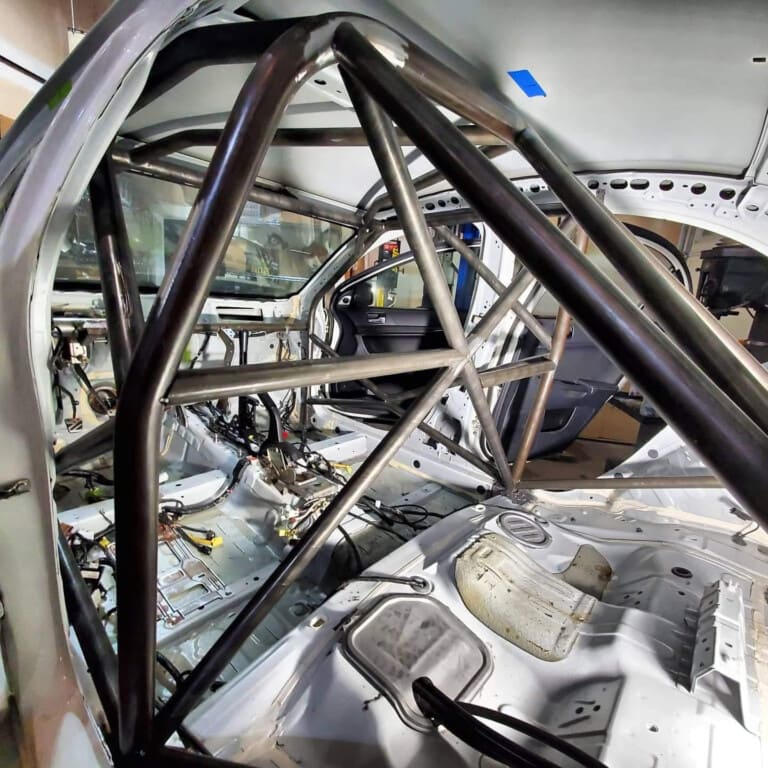

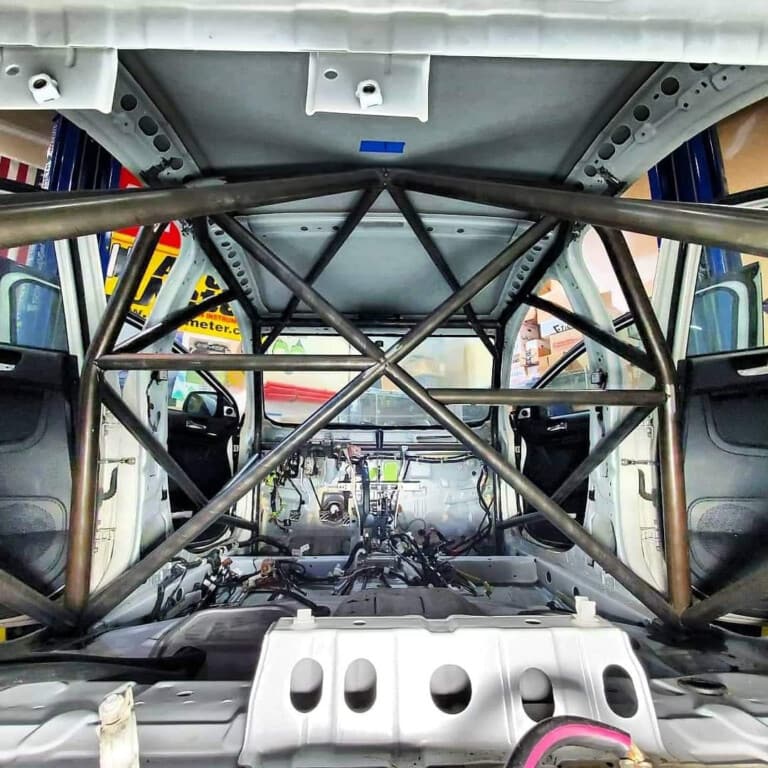

  • Rada T45 Alloy Rally-Spec Roll Cage
  • Rada Chromoly Radiator Support
  • Rada Chromoly Crossmember
  • Sparco Ergo Racing Seat With Custom Seat Mounts
  • Sparco P 310 Steering Wheel
  • Proteon Aero Carbon Fiber Bumper With Integrated Headlight Blanks
  • Proteon Aero Carbon Fiber Splitter With Integrated Diffuser and Winged Elements
