This Time Attack EVO X project was quite the custom build. Work included turbo kit fabrication, air-air intercooler, aluminum exhaust, reverse-entry intake manifold, roll cage, chromoly tubed front end and more. Ryan plans to compete with the car in Global Time Attack’s Limited Class with over 800whp on tap.

Turbo / Induction / Cooling
  • BorgWarner EFR 9274 Turbo
  • Rada 347SS Turbo Manifold
  • Twin Turbosmart 45mm Motorsport Wastegates

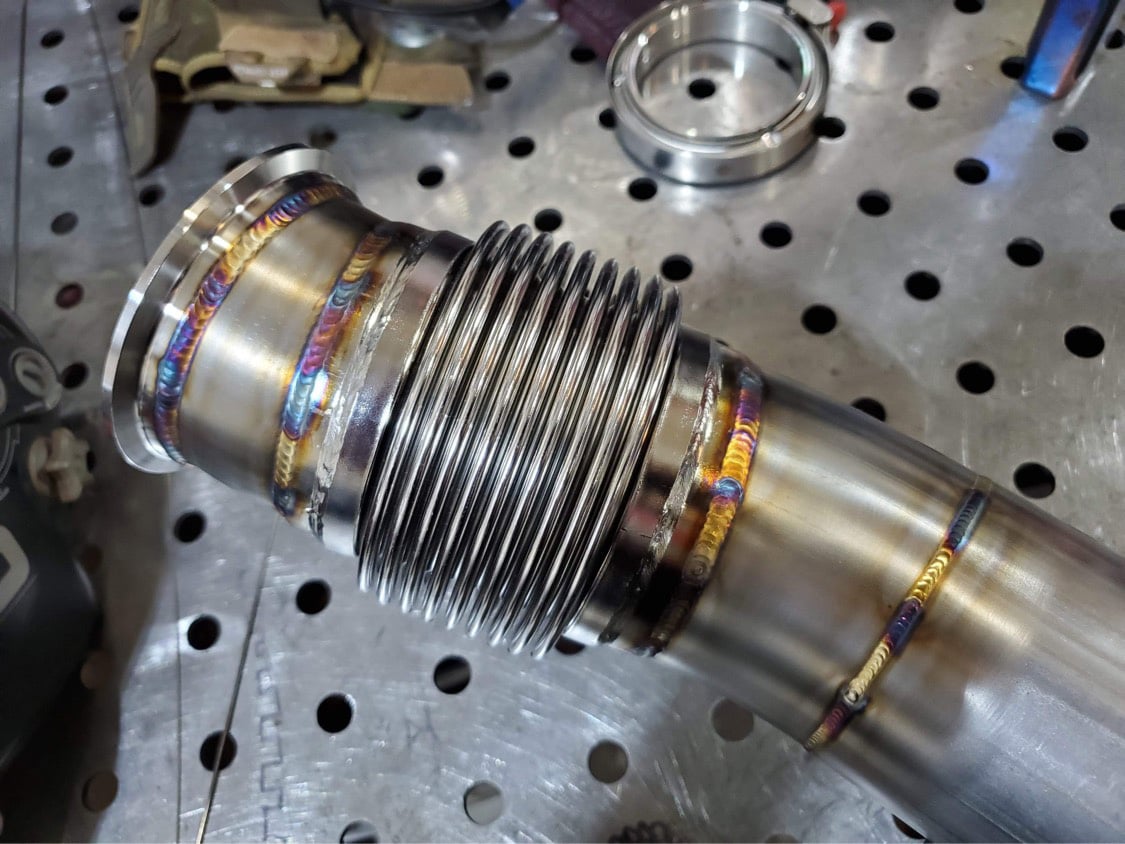

  • Rada 3.5″ Stainless Steel Downpipe

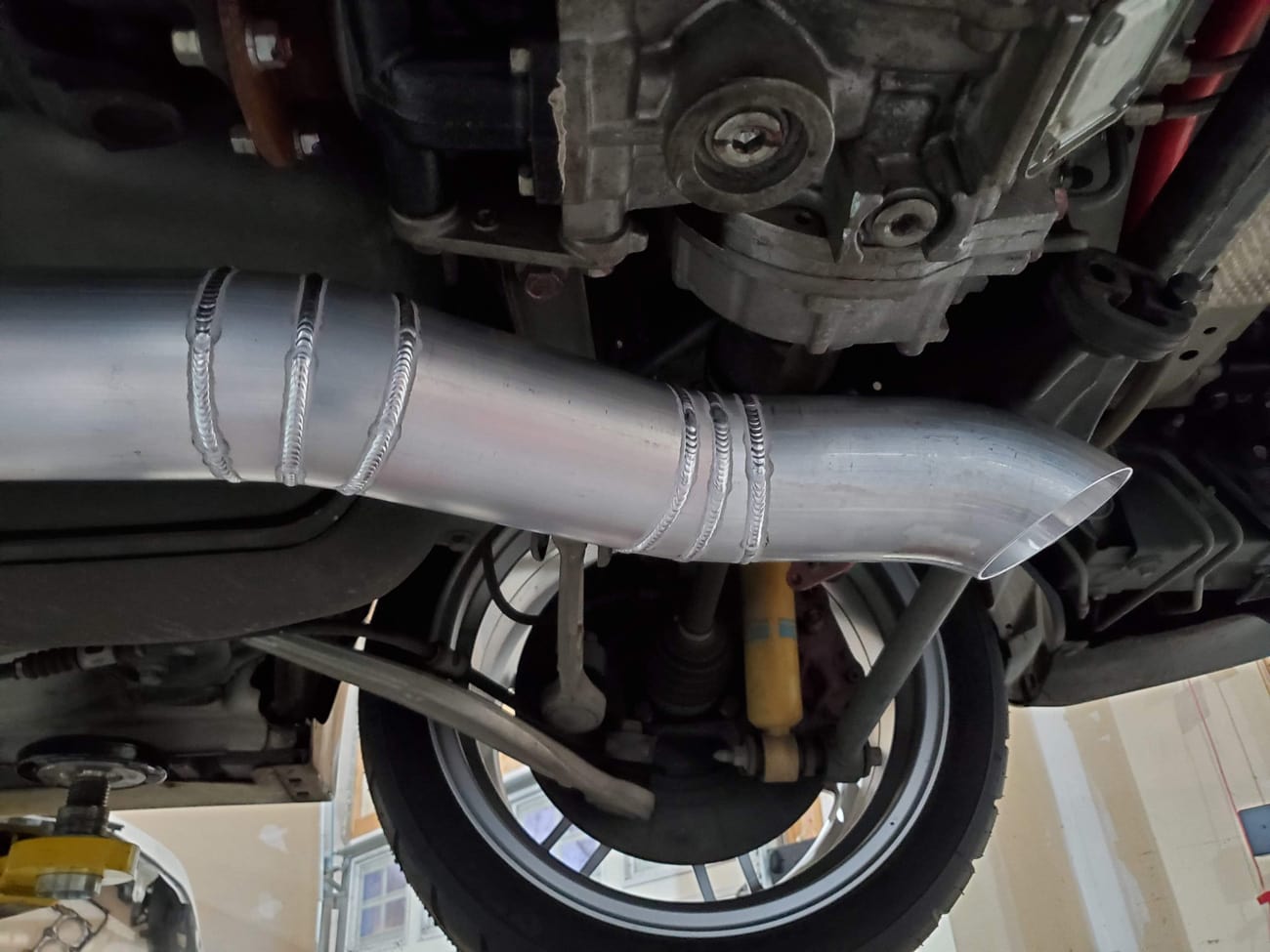

  • Rada 3.5″ Aluminum Exhaust

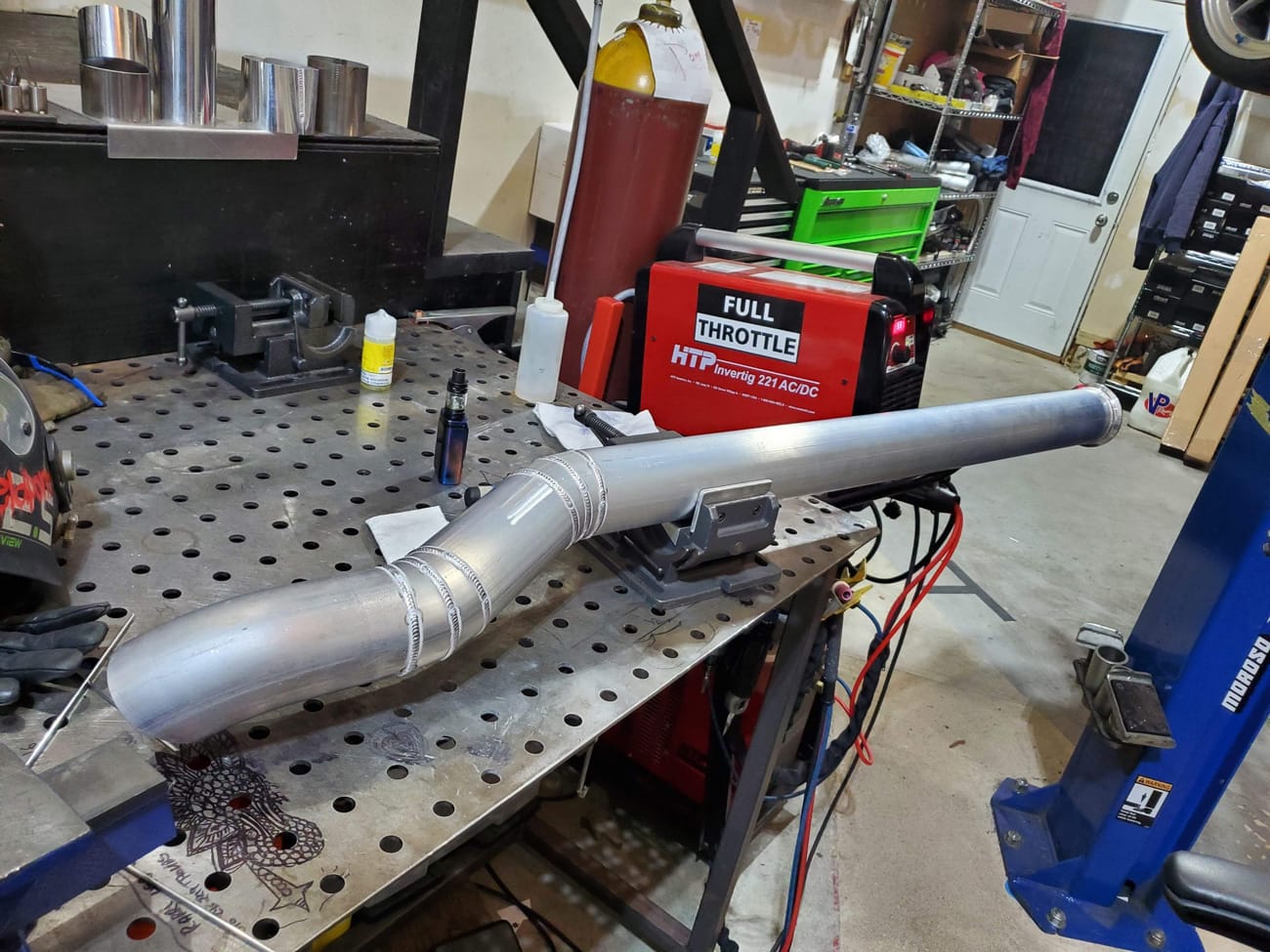

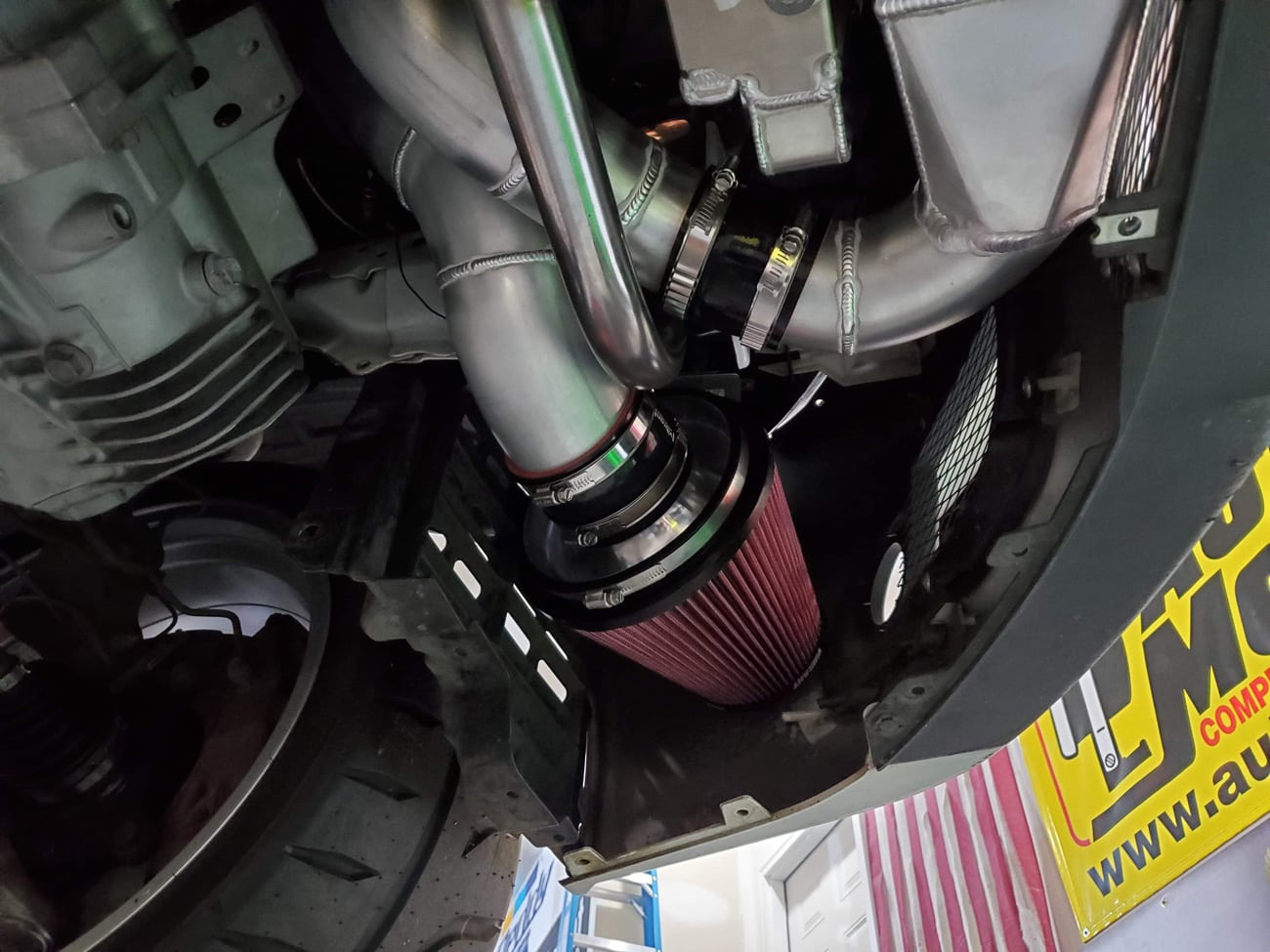

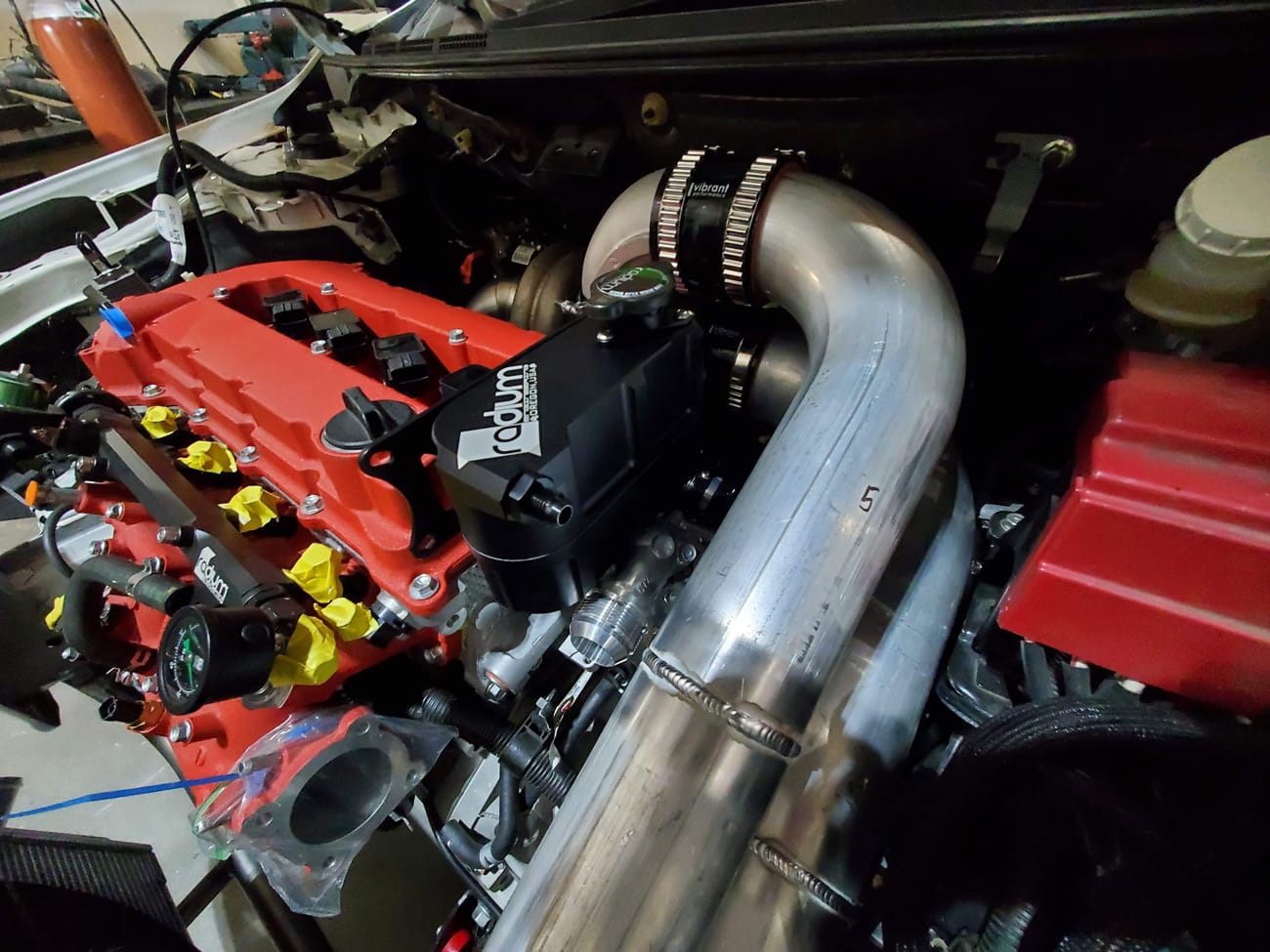

  • Rada 4″ Aluminum Intake Pipe

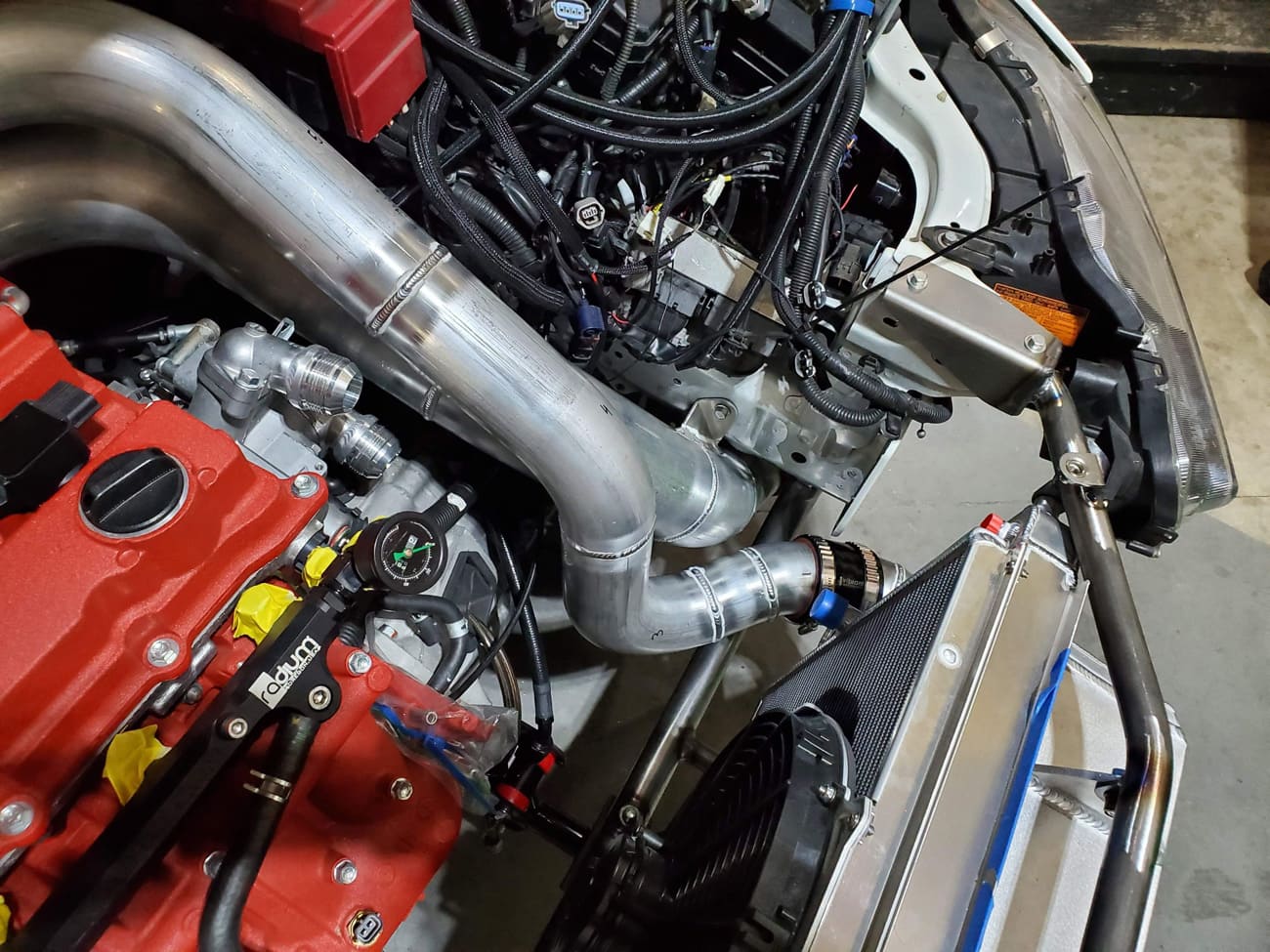

  • Rada 3″ Aluminum Intercooler Piping

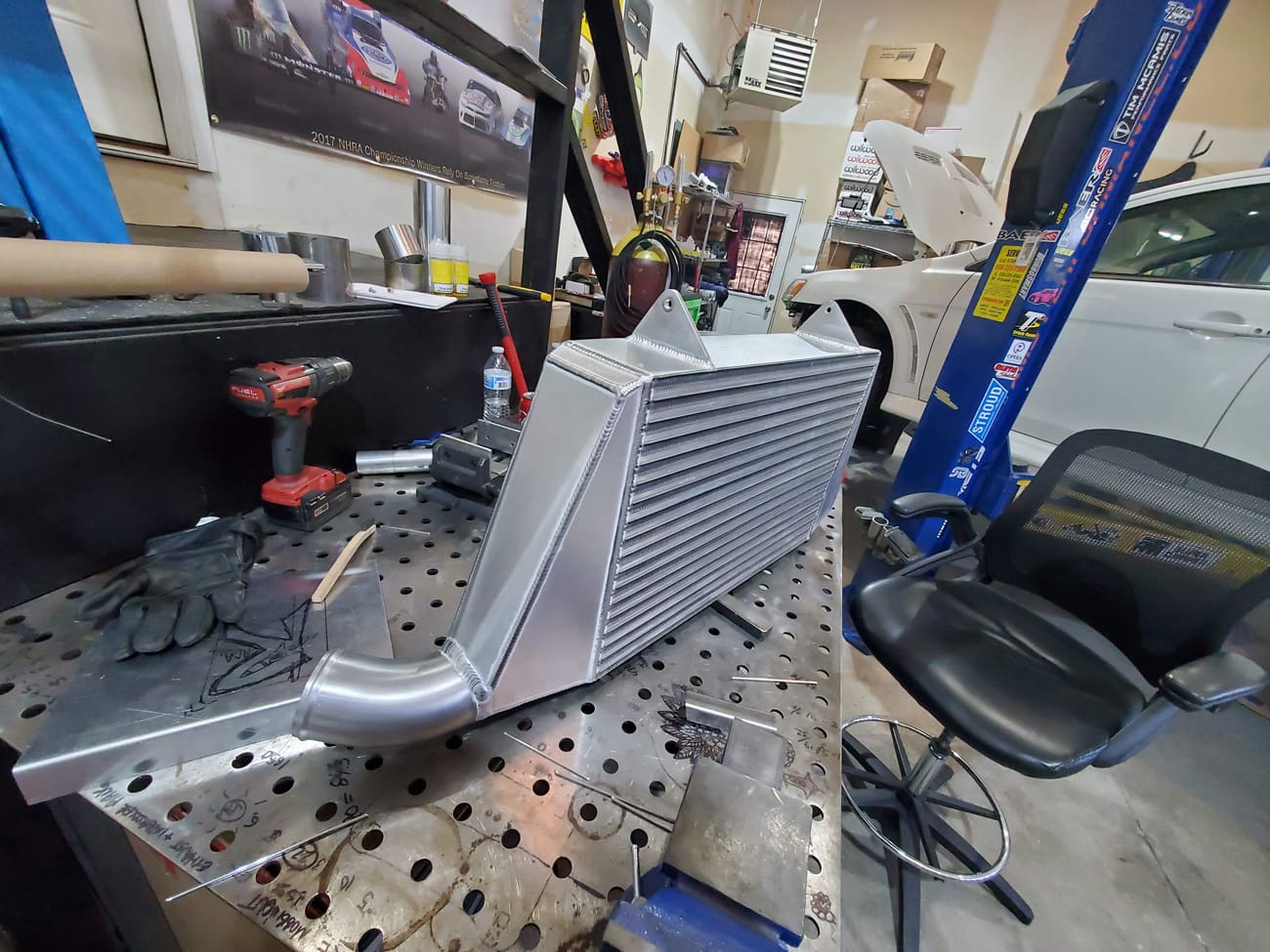

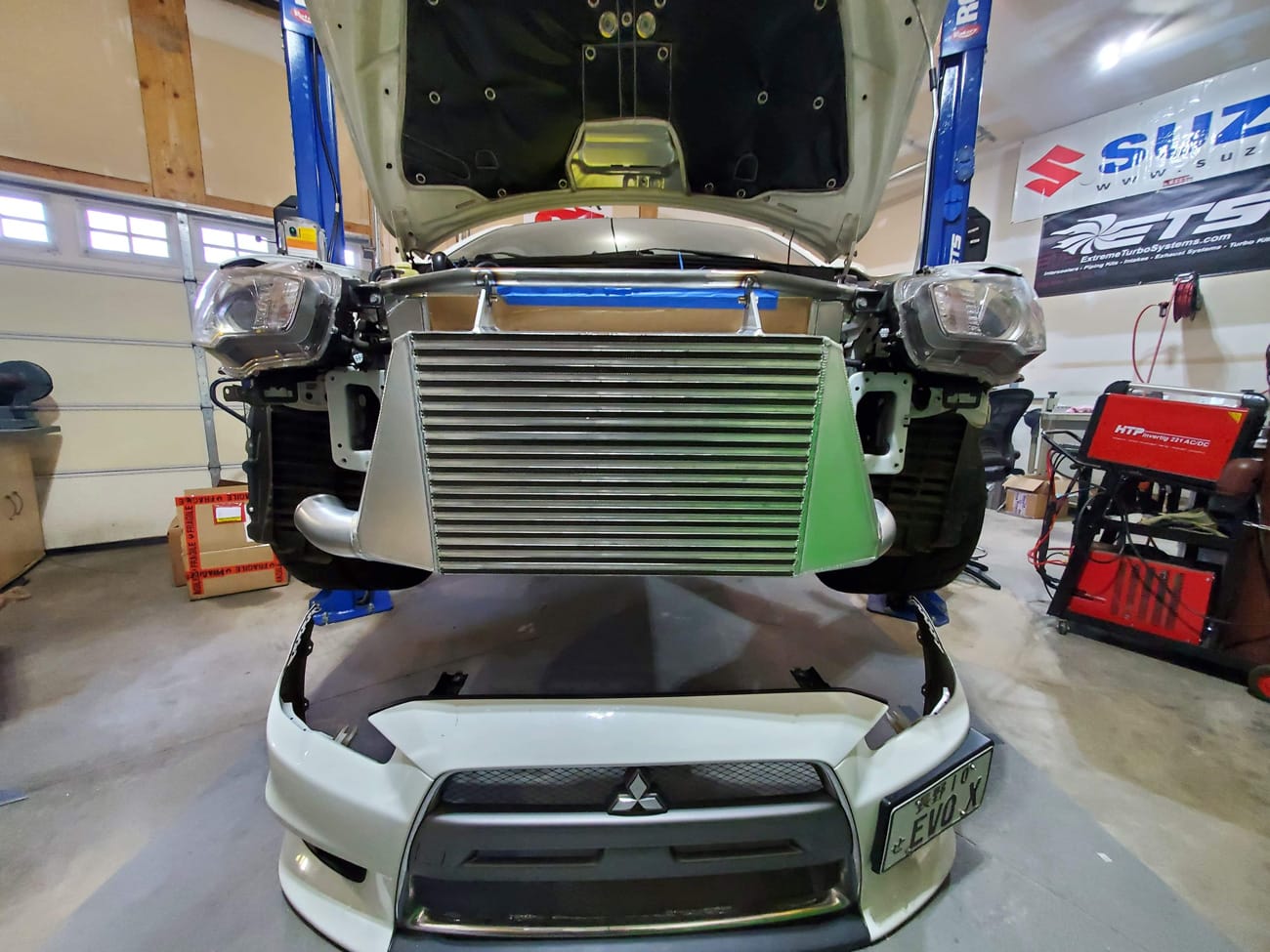

  • Rada Intercooler Using Garrett 22″x14″x 4.5″ Air-Air Core With Inlet Diffuser
  • C&R Racing Late Model Radiator / Oil Cooler Module

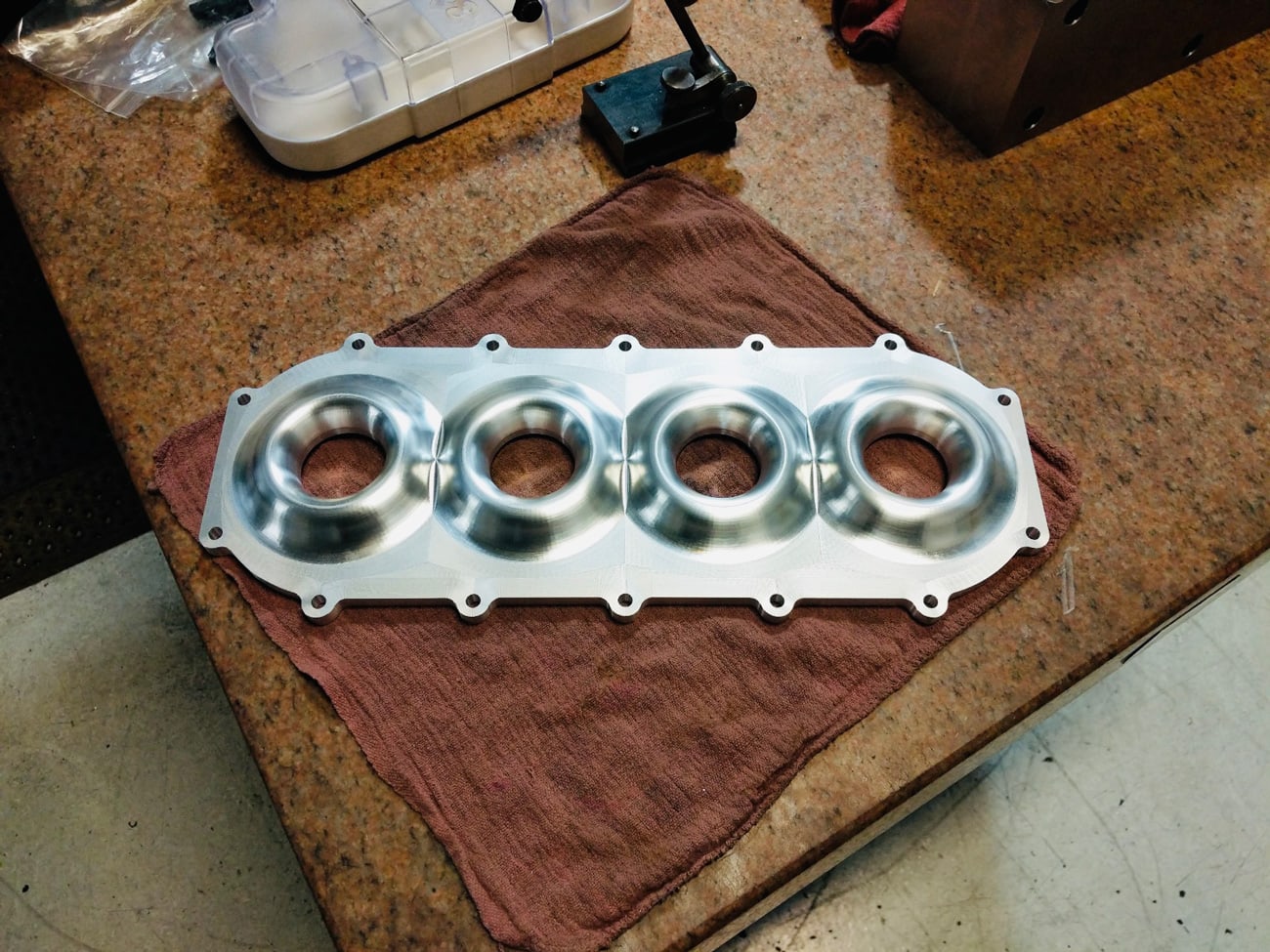

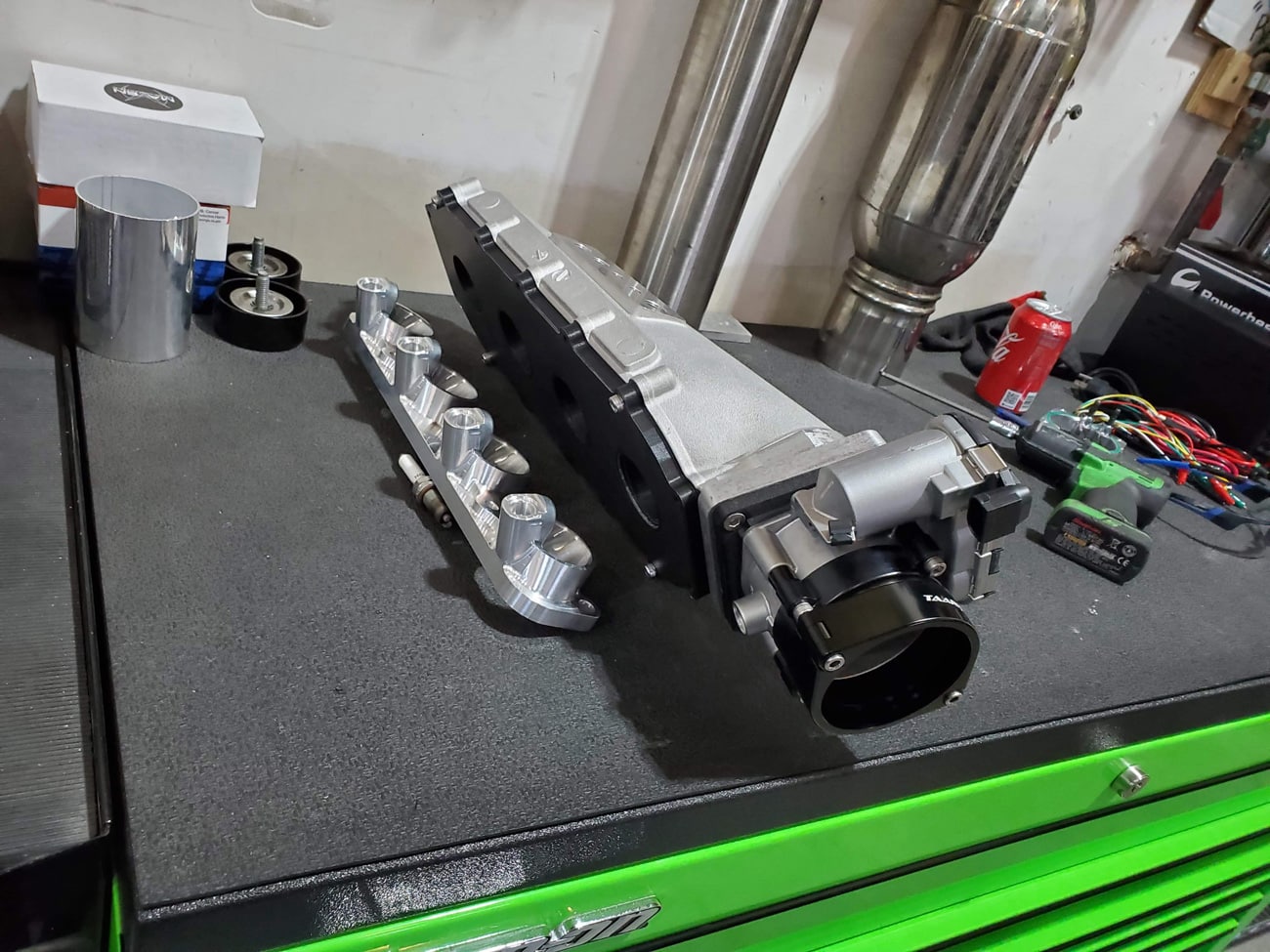

  • Rada Reverse-Entry Intake Manifold

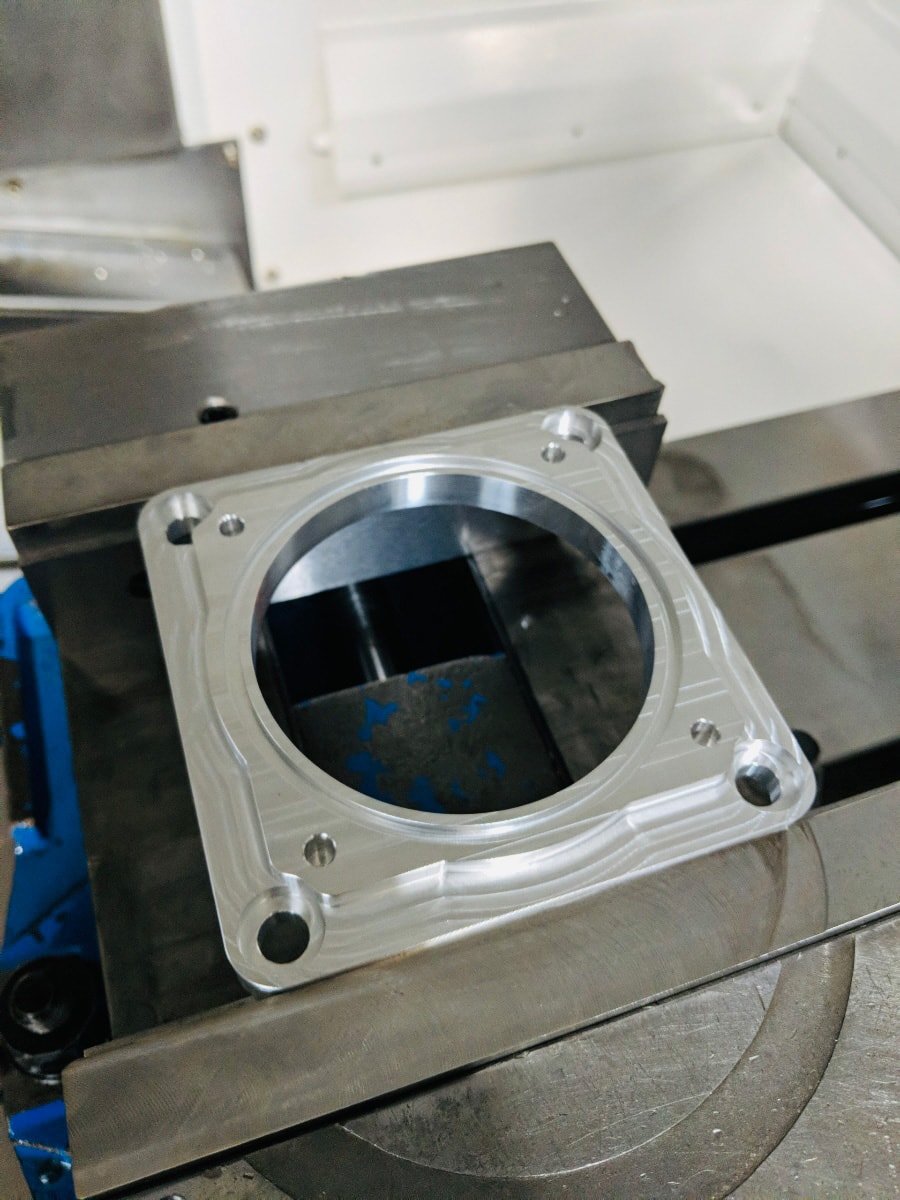

  • Bosch Motorsports 74mm Throttle Body
  • 2.4L
  • Manley Billet 94mm Stroker Crankshaft
  • Manley Turbo Tuff Forged Rods
  • Manley Forged Pistons
  • L.A.Sleeve Performance Sleeves
  • ARP Custom Age 625+ Head Studs
  • ARP Custom Age 625+ Rod Bolts
  • Cosworth Headgasket
  • GSC S2 Camshafts
  • Turbomotiv Billet Exhaust MIVEC Housing
Electronics / Fueling
  • MoTec M150 ECU with JRR Firmware
  • Salasko Racing Mil-Spec Wiring Harness Adapter with Auxiliary I/O
  • ID2000 Fuel Injectors
  • Radium Fuel Rail
  • Radium Fuel Pressure Regulator
  • Radium Fuel Pulse Damper
  • Twin Bosch 044 Fuel Pumps
  • Radium Surge Tank
Drivetrain / Brakes / Suspension
  • Samsonas 5-Speed Sequential Gearbox
  • Exedy Twin Disc HD Clutch With AMS Push Style Conversion
  • ShepTrans EVO 8 Rear Diff Conversion With Cusco 1.5 Way LSD
  • ShepTrans Rebuilt Transfer Case With Wavetrac LSD
  • Driveshaft Shop Rear Axles
  • Driveshaft Shop Carbon Fiber Driveshaft
  • 3-Way Adjustable Coilovers
  • Big Brake Kit Package
Misc / Safety

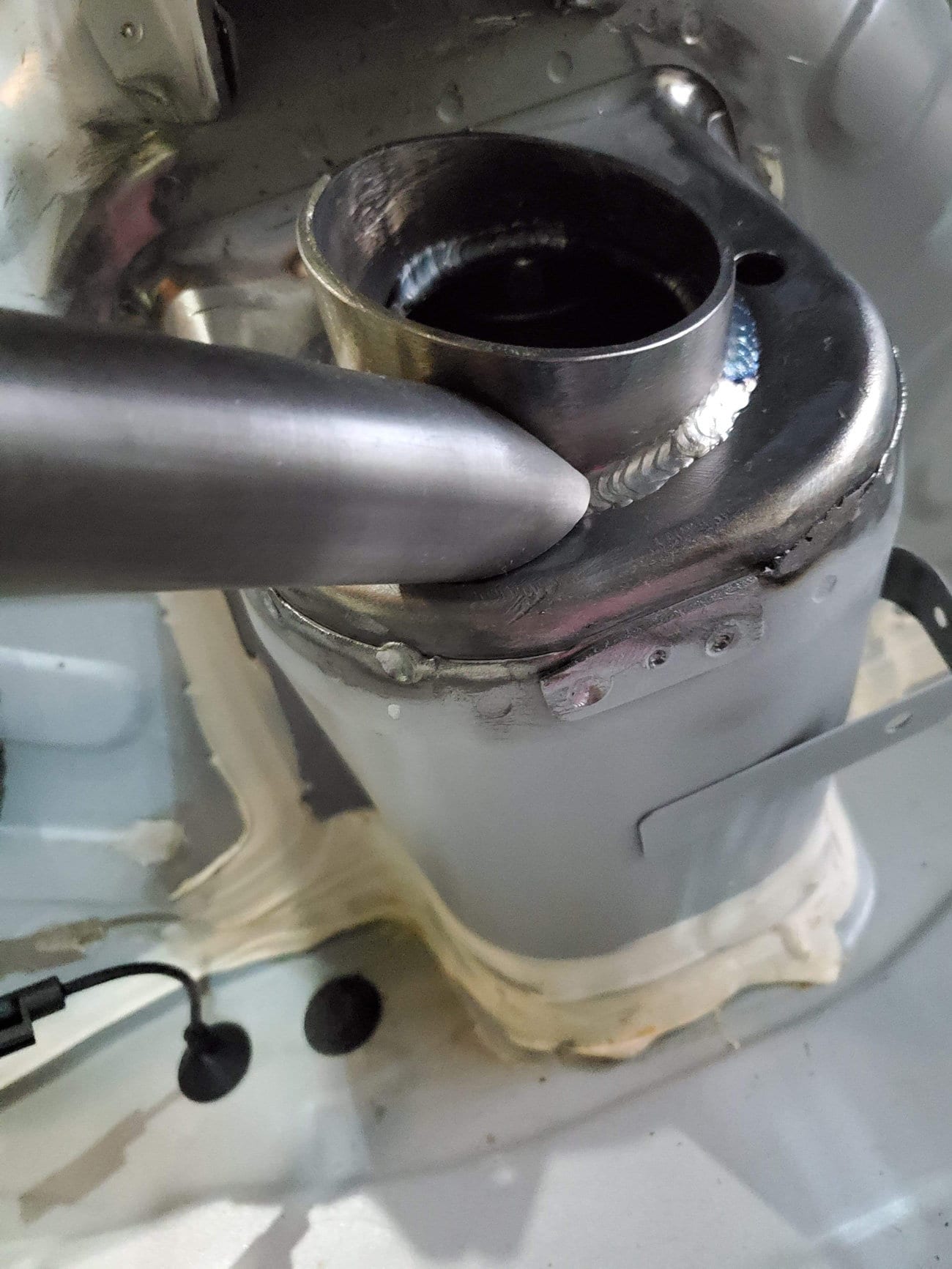

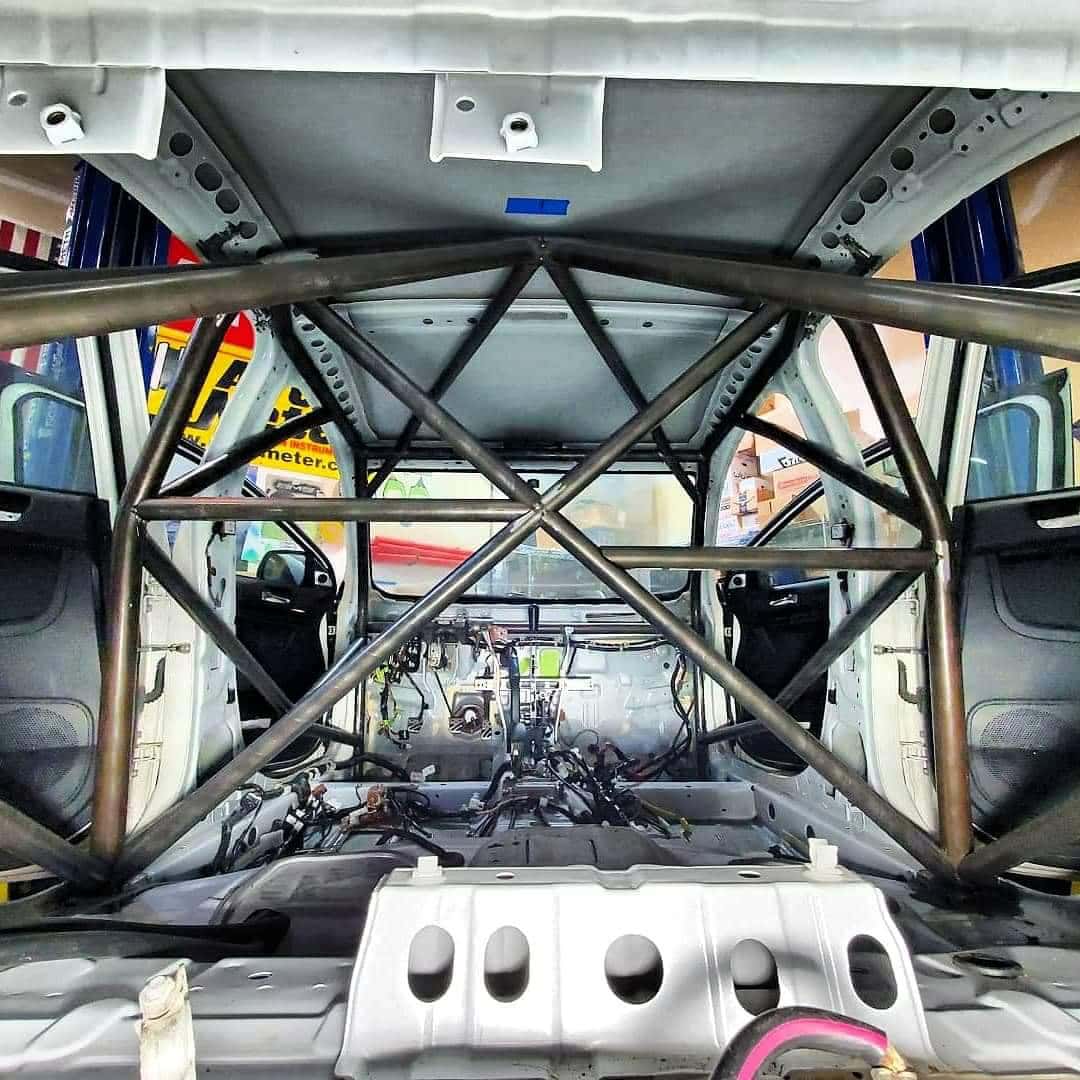

  • Rada T45 Alloy Rally-Spec Roll Cage

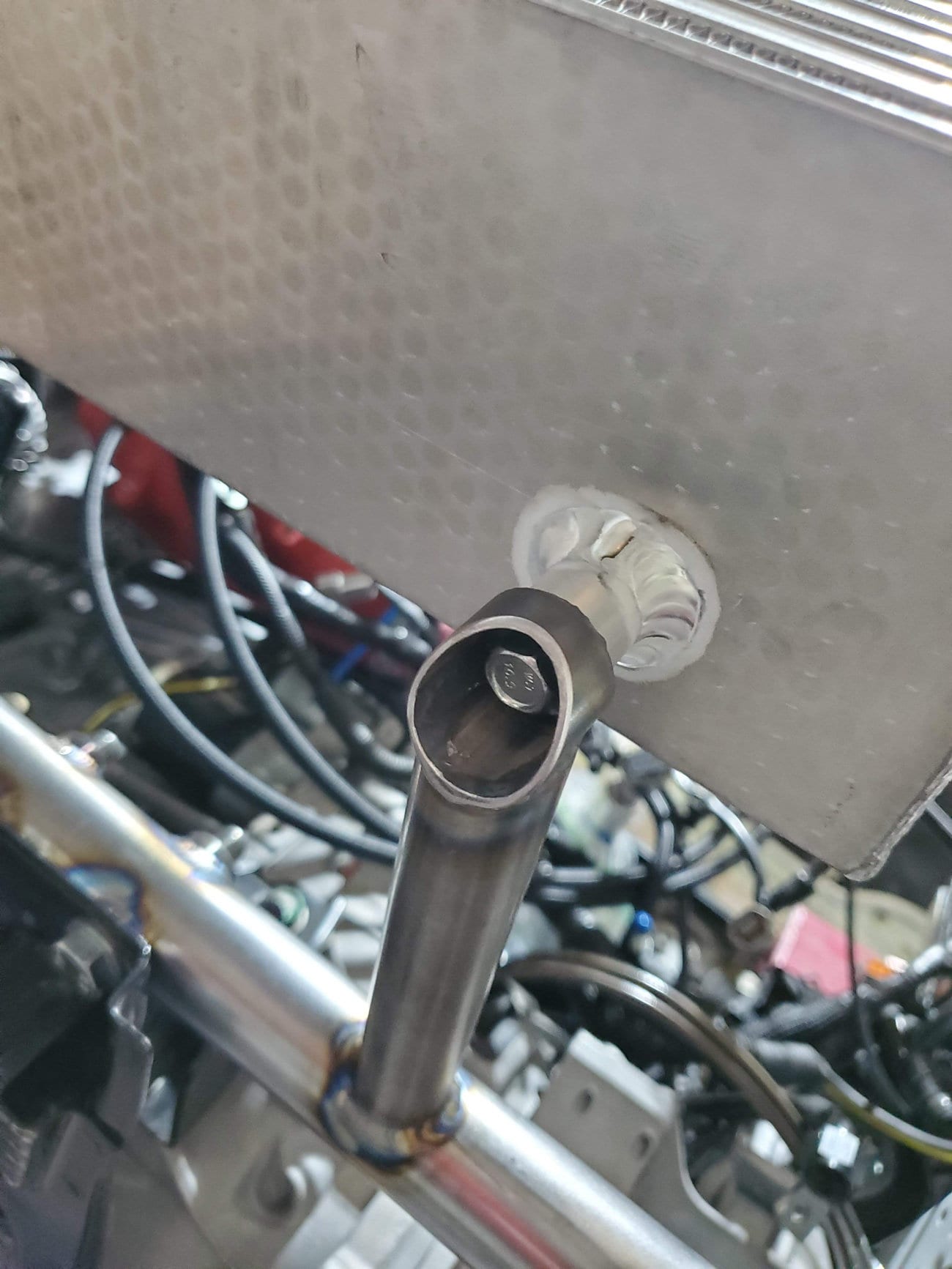

  • Rada Chromoly Radiator Support
  • Rada Chromoly Crossmember
  • Sparco Ergo Racing Seat With Custom Seat Mounts
  • Sparco P 310 Steering Wheel
  • Proteon Aero Carbon Fiber Bumper With Integrated Headlight Blanks
  • Proteon Aero Carbon Fiber Splitter With Integrated Diffuser and Winged Elements
